Project Overview
SAUDI THALATE GENERAL MANUFACTURING INDUSTRIAL CO. LTD
Fabrication and coating of a 48” CS-52 header delivered to the highest industrial standards.
Project Overview
Project Overview

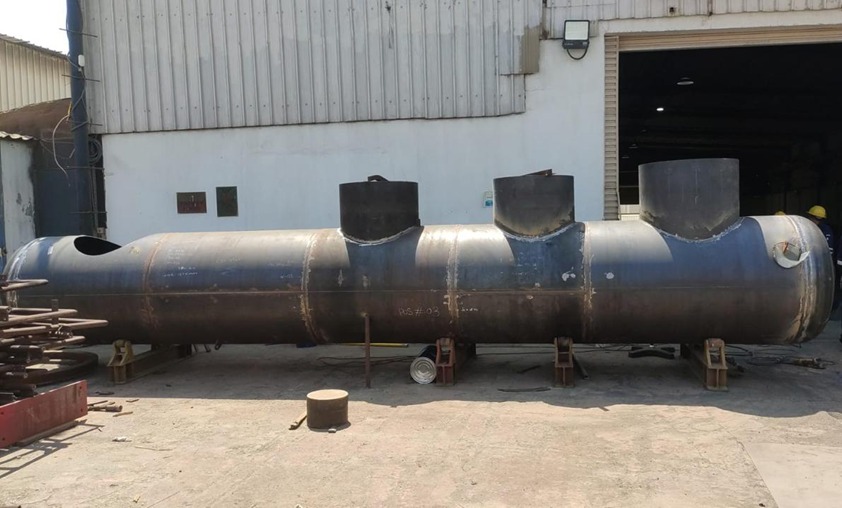

48” CS-52 Header Fabrication, Welding, Internal & External Painting after NDT Acceptance including Material Supply and Erection as per approved drawing
Fabrication Stage:
- Materials Cutting
- Materials Rolling
- Fit-up
- GTAW for Root
- DPT for Root
- SMAW for Filling & Cap Pass
- Drain & Vent Erection

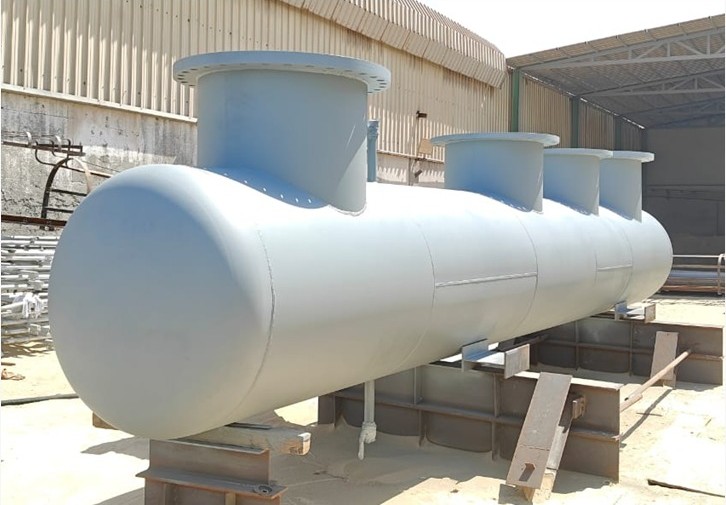

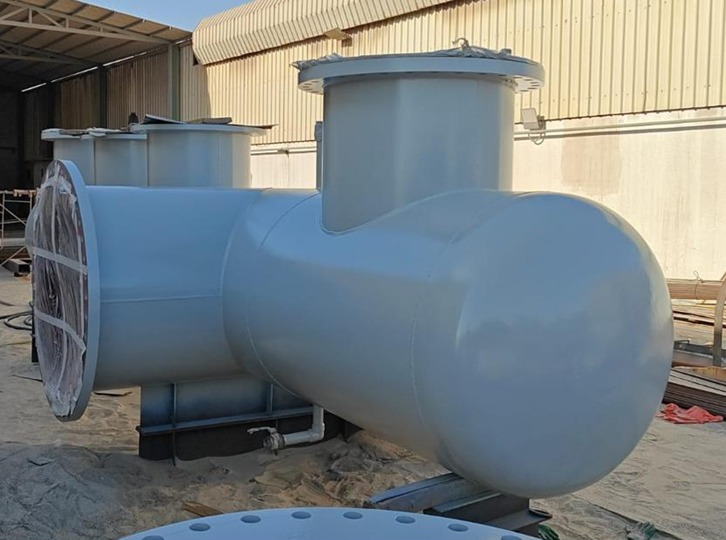

Internal & External Painting :
- Painting is to protect its integrity. Steel, like many metals, can be affected by elements such as UV rays, wind, water and would and if exposed to the elements for long periods of time can become rusted and eventually weakened. Including Sandblasting abrasive blast clean to Sa 2½ (ISO 8501-1) with a surface profile of 50 – 75 microns (2 – 3 mils) for excellent corrosion protection

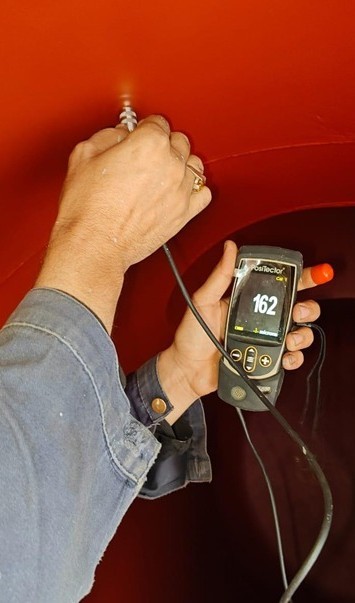

- Epoxy paint type 1st & 2nd Coat – 200 microns
- Final coat – 50 Microns
Project Gallery
